Polyester Staple Plastic Recycling Machine 1500RPM 190KW For Waste Recycle Plant

Product Categories
Huihao Hardware Mesh Product Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Polyester Staple Plastic Recycling Machine 1500RPM 190KW For Waste Recycle Plant

Brand Name : HUIHAOCUSTOM

Model Number : hh-500-5000

Certification : ISO9001-2015

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 10 sets

Delivery Time : 10 work days

Packaging Details : Stretch film and wooden case as international sea shipment standards for PET recycling machine

machnie type : PET Bottle Washing Line

power : Depend on model

Core Components : PLC, Bearing, Motor

equipment list : Dewatering Machine, Floating Washing Tank, Hot Air Dryer,...

valtage : 380v/Custom

key selling : Easy to Operate

Label remove effective : more than 98%

dewatering machine spinning speed : 1500RPM

PVC content : LESS THAN 100 PPM

Moisture Content : 1.5%

Contact Now

Polyester Staple Fiber Grade PET Bottle Plastic Recycling Machine For Waste Recycle Plant

Waste Plastic PET Bottle Washing Recycling machine:

This plastic recycling machine it will be used to recycle pet bottle, water bottle, Sprite bottle, cola bottle, juice bottle, pet sheet, pet packing container, pet strap,pet film and so on., final will produce to clean PET flakes, so you can make pellet, PET strap, filament yarn, PET sheet, PET film and so on
We also can configure the line according to the raw material and customer requirement. According to the final usage of PET flakes, We supply 3 grade bottle flakes : - Bottle to bottle grade, Food Standard - Yarn/filament grade - conventional grade.

Specification of Polyester Staple Fiber Grade PET Bottle Plastic Recycling Machine

Model
Capacity
Installed Power
Steam Use
Water Supply
Manpower
Area Required
HH-500
500 kg/hr
190KW
Optional
4-5 m3/hr
4-6 Person
60*5*5 m
HH-1000
1000 kg/hr
260 KW
Optional
6-8 m3/hr
8-10 Person
80*8*5 m
HH-2000
2000 kg/hr
400 KW
Suggest Use
10-15 m3/hr
10-12 Person
80*8*5 m
HH-3000
3000 kg/hr
600 KW
80,000 Kcal
20-30 m3/hr
12-16 Person
100*8*10 m
HH-4000
4000 kg/hr
800 KW
100,000 Kcal
30-40 m3/hr
15-20 Person
135*10*10 m
HH-5000
5000 kg/hr
1000 KW
120,000 Kcal
40-50 m3/hr
15-20 Person
135*10*10 m

Polyester Staple Fiber Grade PET Bottle Plastic Recycling Machine Details

Bale Opener machine(Optional Choose) Trommel Machine (Optional Choose)

Polyester Staple Plastic Recycling Machine 1500RPM 190KW For Waste Recycle Plant

Label Remover Machine
it use to remove the labels from the bottle and separate label out
Rotary Blade made by GERMANY import alloyed steel making for long time using,
The barrel designed with doors opening on it very easy to opening and maintenance
Bottom design with holes to drain out liquid which contained in the bottles

Polyester Staple Plastic Recycling Machine 1500RPM 190KW For Waste Recycle Plant

crusher machine
crushing the bottles to PET flakes,water pre-washing the dirty flakes ,cooling the blade
by 0.75kw motor open the chamber,it is easy for worker change the blade
Use D2 blade for higher HRC,long time using (25-30 times grinder than other material),
we also can use DC-53 mateial,but the cost more higher
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use

Polyester Staple Plastic Recycling Machine 1500RPM 190KW For Waste Recycle Plant

hot washing tank
with hot water washing to remove oil/glue and other dirty from the flakes.
The tank made with insulation layer to save energy.
Feeding caustic soda/detergent to washing Its better Heating by steam

Polyester Staple Plastic Recycling Machine 1500RPM 190KW For Waste Recycle Plant

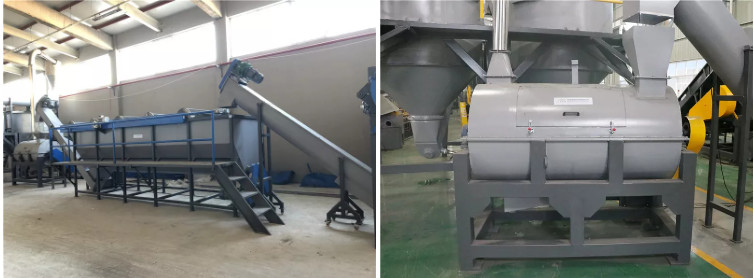

Floating washing tank

Horizontal dewatering machine
Washing the flakes, with the top rollers automatic take out the caps/rings and other impurities,flakes sinking down and take out by screw Friction washing the material and its running with high speed can remove the dirty, dust, sand out with the dirty water

Polyester Staple Plastic Recycling Machine 1500RPM 190KW For Waste Recycle Plant

Zig-zag air classifier

PET flakes color sorter machine

Features of Polyester Staple Fiber Grade PET Bottle Plastic Recycling Machine
1-Labor saving. The bale opening and feeding system we provide will equally feed the material.
2- You can use the manually sorting system to selecting out different color bottles and non-PET material
3- Metal detector is optional for you which used to take out any kind of metal from the PET bottles
4-Specially designed PET bottle granulator can easily get high output and with water doing wet griding can
reduce wear of blades.
5- High speed dewatering machine and drying system will insure the final PET flakes moisture <1%
6-The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content


Product Tags:

Polyester Staple Plastic Recycling Machine



1500RPM Plastic Recycling Machine



190KW PET Bottle Recycling Line
